Nginx Proxy Manager is a web panel that sets up Nginx as a reverse proxy and issues certificates on its own. It is useful when you would rather configure things with a mouse than edit text files by hand.

What a reverse proxy is, briefly

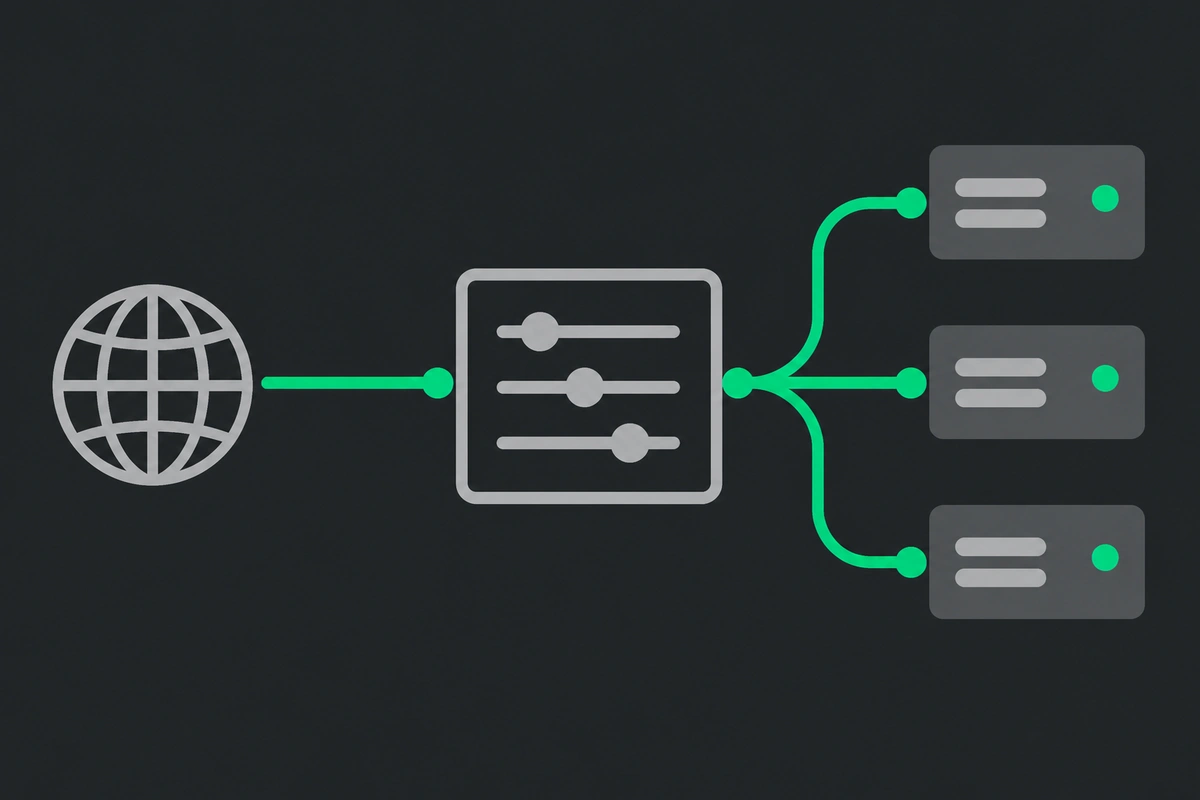

A reverse proxy accepts a request on one domain and port, then forwards it to the right server inside the network, hiding that server's real address. If you need the actual config with directives, the details are in the article on reverse proxy in Nginx.

NPM, hand-written configs, and Traefik

All three approaches solve the same task differently, and the choice depends on how many rules there are and how often they change.

Criterion	NPM	Hand-written configs	Traefik
What is configured	through a web panel	in text config files	through container labels or files
Who gets certificates	the panel itself	a separate client that you set up	Traefik itself, from labels
Where state is stored	in the panel's own database	in text config files	in config and container labels
Who it suits	those who do not want to edit config by hand	those who need full control	those with many containers and frequent changes

The separate approach based on container labels is covered in the article on Traefik.

Installing the panel as a container

The panel is set up as a container, with ports for web traffic and a separate port for signing in to the panel itself, plus volumes for data and certificates.

services:
  app:
    image: jc21/nginx-proxy-manager:latest
    restart: unless-stopped
    ports:
      - '80:80'
      - '443:443'
      - '81:81'
    volumes:
      - ./data:/data
      - ./letsencrypt:/etc/letsencrypt

After startup the panel opens on the sign-in port, and the first thing to do is sign in with the default administrator details and immediately change both the email and the password, which is the most common mistake when setting up the panel.

First proxy host, step by step

Enter the domain the proxy host will serve.
Enter the address and port of the server the panel should forward requests to.
Turn on issuing an SSL certificate for that domain.
Turn on redirecting from plain HTTP to the secure connection.

What breaks most often

Problem	Likely cause	What to check
The certificate is not issued	the confirmation port is busy or the domain does not point to the server	whether the port is reachable from outside and the domain record
The backend is unreachable	the container address is used instead of the address the panel can see	the backend address and port in the proxy host settings
WebSocket does not work	WebSocket support is not turned on for that proxy host	the WebSocket support switch on that proxy host
The panel is exposed to the outside	the panel's sign-in port is reachable by anyone, not just the administrator	restricting access to the panel's port

When NPM does not fit

The panel becomes awkward once there are so many rules that the interface is hard to follow, when you need non-standard directives the panel does not expose, or when the config must live in version control together with the rest of the code.
